Application 應用

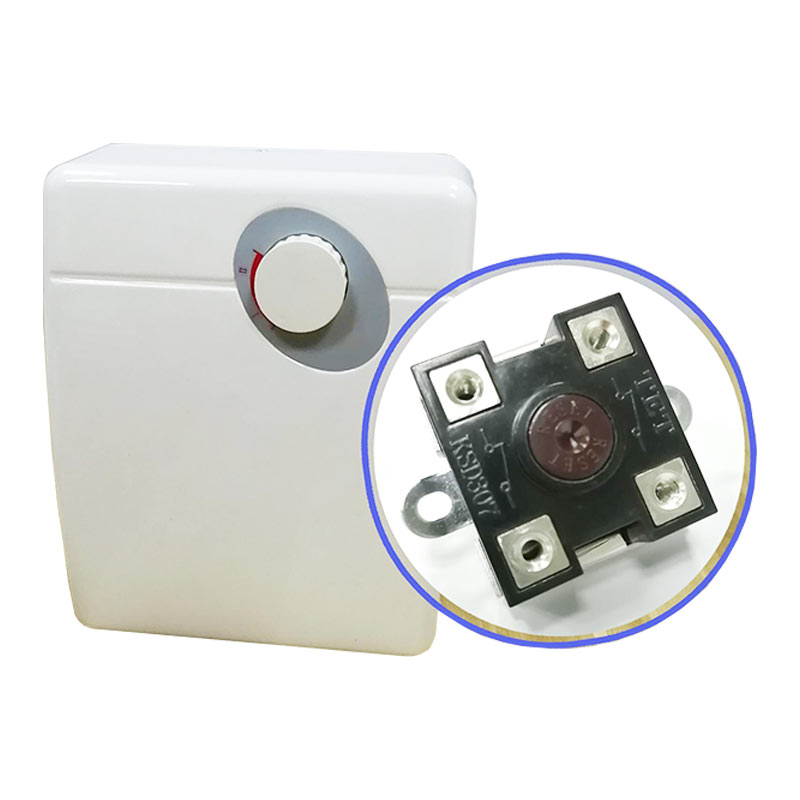

vFor use in household or industrial appliances and office equipment such as: coffee maker, jug kettle, water heater, dishwasher, clothes dryer…etc…
v主要應用于家用或工業用器具上，如:咖啡壺、電熱水壺、電熱水器、洗碗機、洗衣機…等…
Specifications 規格
v Function : v 功能 : | Electrical contacts open/close on temperature rise. When the temp. returns to the specified reset temp., the contacts will return to the original state. 在溫度升高后電路會自動斷開/閉合.當溫度回到設定的值,電路會回到初始狀態. |
v Housing Material : v 外殼材料: | Phenolic Resin (RF) 電木 |
v Standard Rating v 額定功率標準 | [ UL & CUL ] 125V AC 45A [ TUV ] 250V AC 45A or 60A [ CQC ] 250V AC 45A |
v Number of Automatic Cycles for each Automatic Action: v 自動循環動作壽命: | [ UL & CUL ] 6,000 cycles [ TUV ] 3,000 cycles [ CQC ] 6,000 cycles |
v Maximum Temperature : v 最高工作溫度 : | [ UL & CUL ] 140°C [ TUV ] 150°C [ CQC ] 150°C |
v Temperature Setting Range : v 溫度控制設定范圍 : | [ UL & CUL ] 0°C - 140°C [ TUV ] 50°C - 150°C [ CQC ] 30°C – 150°C |
v Tolerance of Operation Range : v 操作溫度公差范圍 : | ± 5℃~± 10℃ |
v Switching Differential : v 溫差： | 10 – 50K depending on mounting and design 依據安裝及設計定為10 – 50K不等 |
Standard Terminals 接線端子規格
v Screw terminals are suitable for M4
v 采用M4螺絲固定方式
Approval 認證
v UL Licence No.: E119937
v TUV Licence No.: R 50163732
v CQC No.: CQC 09002037806
CQC 13002095720
