Application 應用

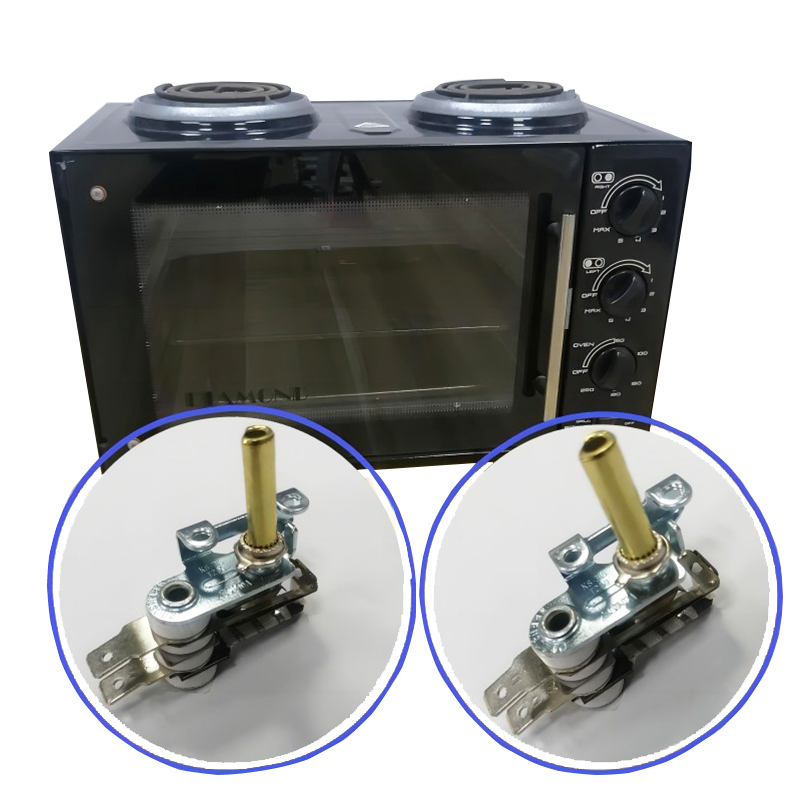

v Domestic appliances such as, grills, baking ovens, radiation heating appliances In general, any electrical heating appliances requiring an increased thermal coupling to obtain the desired function can be applicable.
v主要應用于家庭器具上，如：烤板、烤箱、熱輻射用器及任何普通用電加熱器具
Specifications 規格
v Function : v功能 : | Single pole, the contact opens when the temperature is reached. 單體跳動特性，當溫度達到設定值后會自動斷開電路 |
v Temperature control method ( ambient temperature : 25°C ): v 溫度控制方法(環境溫度: 25°C ): Note備注 : (1) The rotated angle and % on time is not in a linear ratio. 轉軸旋轉角度與通電百分比不成線性關系 (2) This ratio can be changed for customer requirement. 通電百分比可按客戶要求來設定 | Control knob rotated angle (°D) % *effective time 轉軸旋轉角度 通電時間百分比 0° - 75° 15% 75° - 240° 15% - 70% 240° - 270° 70% - 100% over 270° 100% *effective time = % of circuit “power on” *實際消耗時間 = 一個循環中通電所占時間 |
v Tolerance of Operation Range : v 操作溫度公差范圍 : | ± 10% |
v Standard Rating : v 額定功率標準: | [ UL & CUL ] 125V AC 14A & 250V AC 10A
|
v Endurance Cycles for each Automatic Action: v 自動循環動作壽命: | [All Standard] 100,000 cycles 所有標準 |
v Maximum Temperature : v 最高工作溫度 : | [All Standard] 200°C 所有標準 |
v Turning Range : v 旋轉角度 : | @ 300°D limited turning ranges possible 最大旋轉角度可控制在大約300° |
Connections 連接方式
v Push-on terminal (For receptacle 4.8 mm or 6.3 mm) and M3 screw terminal are alternative.
v 接線片有插線（配4.8或6.3規格線插）端子及鎖M3螺紋端子規格供選擇
Approval 認證
v UL File No.: E119937
