Application 應用

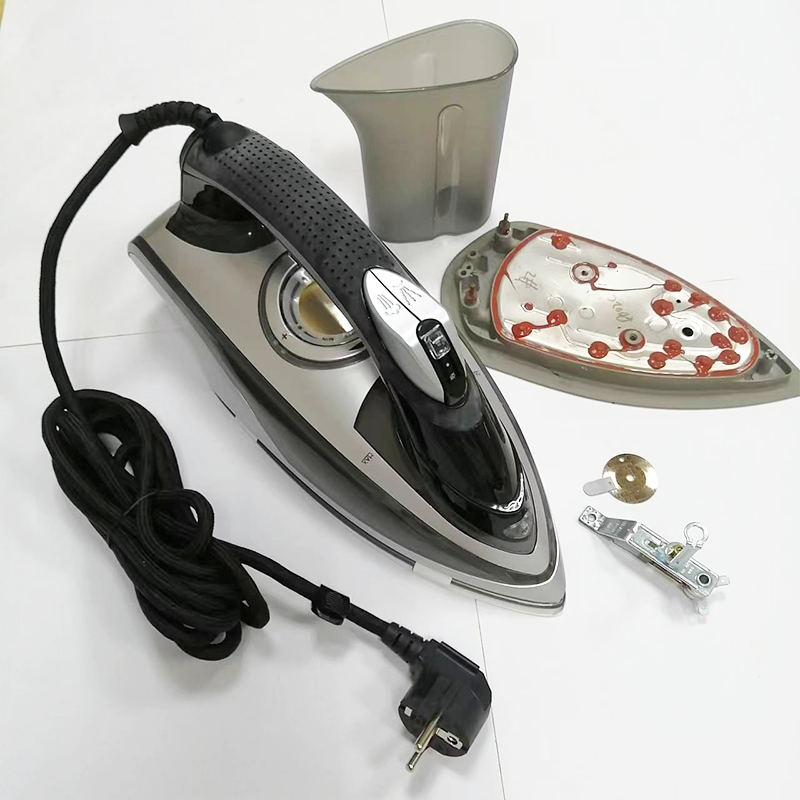

v For function of thermal fuse on steam irons, oven…etc..
v主要應用于家用或商用器具上，如：熨斗、烤箱等做熔斷式過熱保護用
Specifications 規格
v Function : v 功能 : | Single pole, the contact opens when the temperature is reached. 單體跳動特性，當溫度達到設定值后會自動斷開電路 |
v Standard Rating v 額定功率標準 | 250V AC 12.5A |
v Number of Automatic Cycles for each Automatic Action: v 自動循環動作壽命: | Thermal Fuse |
v Maximum Temperature : v 最高工作溫度 : | 350°C |
v Functional Temperature : v 動作溫度(Tf) : | 298°C |
v Tolerance of Operation Range : v 操作溫度公差范圍 : | ±10℃ |
v Switching Differential : v 溫差： | 10 – 30K depending on mounting and design 依據安裝及設計定為10 – 30K不等 |
Connections 連接方式
vWelding terminal is alternative.
v 碰焊接線片
Approval 認證
