Application 應用

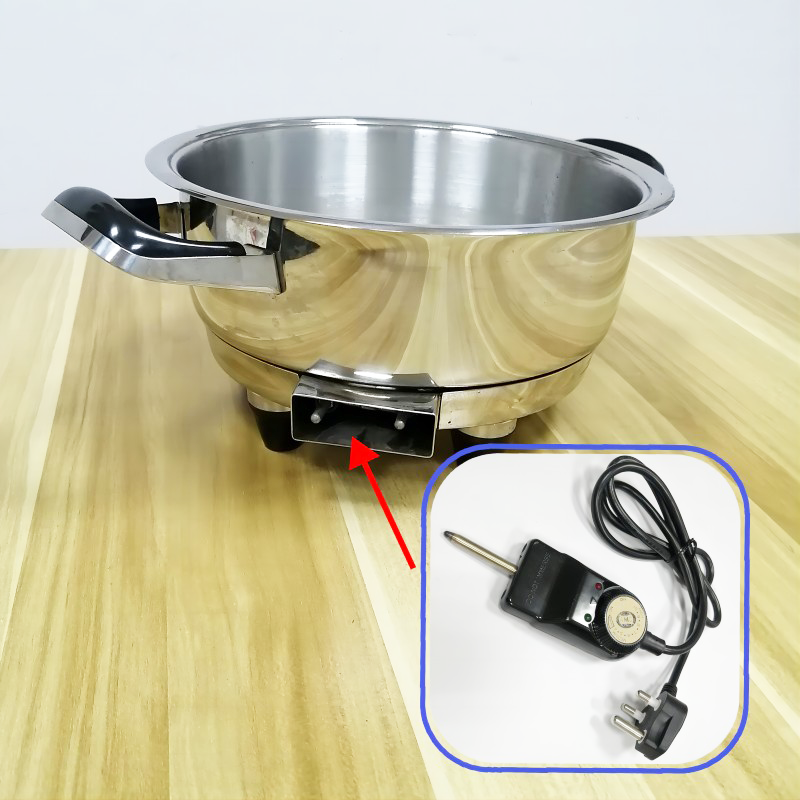

v For household appliances such as: electric tray, electric stove, BBQ grill and other heating kitchen wear…etc..
v主要應用于家用電器產品上，如: 電烤盤、電爐、BBQ烤爐及其它廚房電加熱器具等…
Specifications 規格
v Function : v 功能: | Single pole, the contact opens when the temperature is reached. 單體跳動特性，當溫度達到設定值后會自動斷開電路 |
v Standard of cable : v電源線規格: | H05RR-F, 3G1.0 |
v Standard Rating : v 額定功率標準 : | [ KEMA-KEUR、CE ] 250V AC 10A
|
v Number of Automatic Cycles for each Automatic Action: v 自動循環動作壽命: | [ KEMA-KEUR、CE ] 100,000 cycles
|
v Maximum Temperature : v 最高工作溫度 : | [All Standard] 250°C 所有標準 |
v Temperature Setting Range : v 溫度控制設定范圍 : | [All Standard] 0 - 250°C 所有標準 |
v Tolerance of Operation Range : v 操作溫度公差范圍 : | ± 10℃ |
v Switching Differential : v 溫差： | 10 – 30K depending on mounting and design 依據安裝及設計定為10 – 30K不等 |
v Turning Range : v 旋轉角度 : | @ 300°D limited turning ranges possible 最大旋轉角度可控制在大約300° |
v Speed of Temperature Change : v 溫度變化速度 : | > 1K / min. 大于1K / min. |
Dimensions 尺寸
v Length of cable is depended on customer requirement.
v 電源線長度可依據客戶要求來設定
Approval 認證
v KEMA Licence No.: 35-109876
