Application 應用

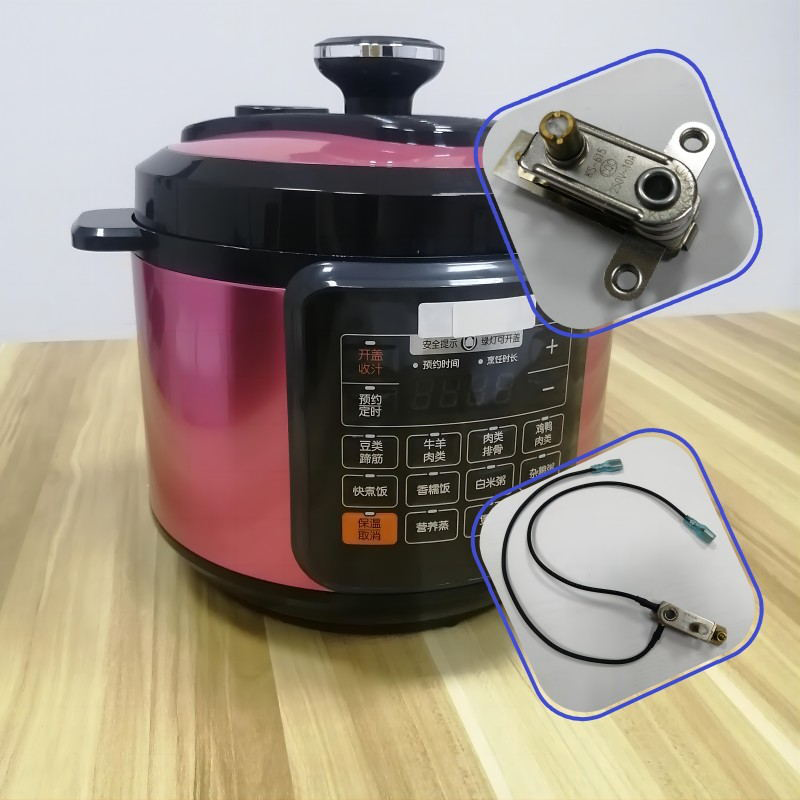

v For function Pressure cooker…etc.
v主要應用于電壓力鍋…等.
Specifications 規格
v Function : v 功能 : | When pressure increases to setting point, the electrical contacts opens; when pressure drops to setting value, the electrical contacts close and returns to normal status. 當壓力達到額定值時，觸點跳開，斷開電路；當壓力下降到設定值時，觸點閉合，接通電路，回到初始狀態 | |

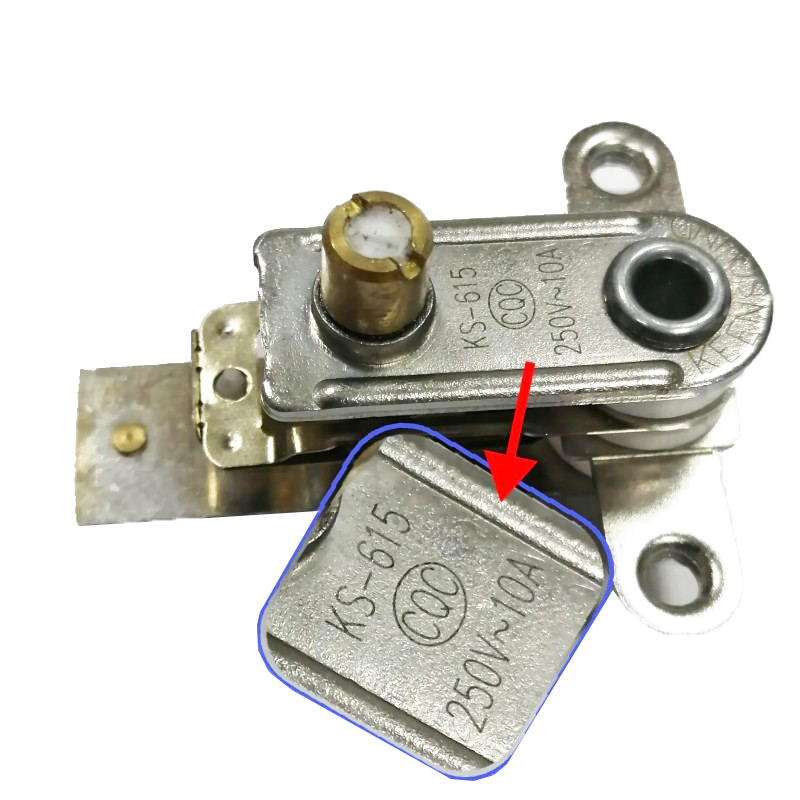

Standard Rating: v 額定功率標準 | [ CQC ] 250V AC 10A [TUV ] 125V/250V AC 10A | |
v Number of Automatic Cycles for each Automatic Action: v 自動循環動作壽命: | [ CQC ] 60,000 cycles [TUV ] 60,000 cycles | |
v Maximum Environment Temperature : v 最高環境使用工作溫度 : | [ CQC ] 250°C [TUV ] 250°C | |
Connections 連接方式

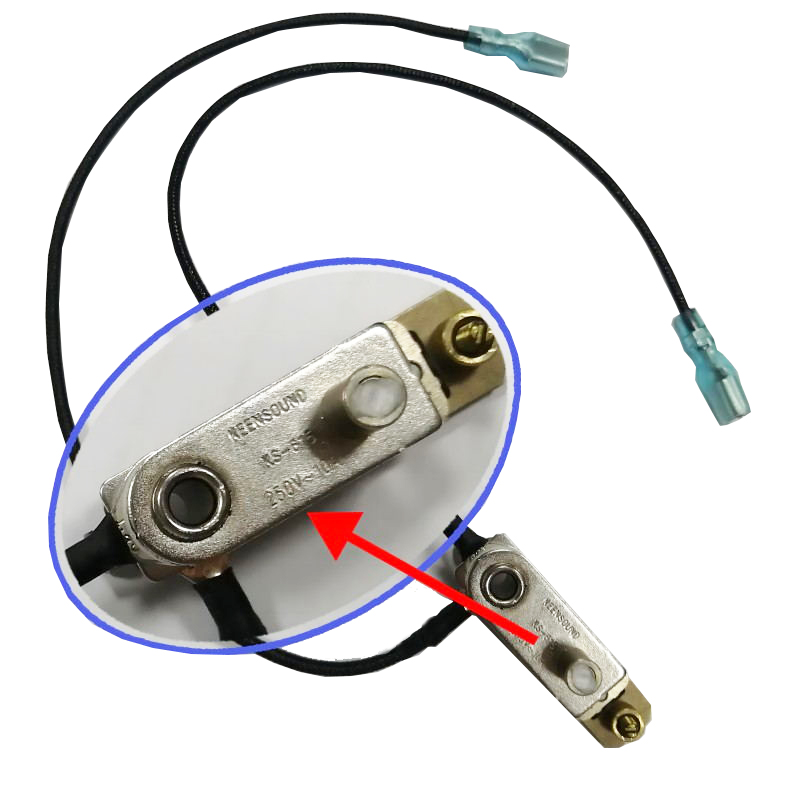

v Push-on terminal ( For receptacle 4.8 mm or 6.3 mm ) and M3，M4 screw terminal is alternative.
v 接線片有插線（配4.8或6.3規格線插）端子及鎖M3，M4螺紋端子規格供選擇
Dimensions 尺寸
v Length of control shaft and angle of terminal plates is depended on customer requirement.
v轉軸長度及接線片角度可依據客戶要求來設定
Approval 認證
v CQC: CQC14002112122
v TUV Licence no.: R 50434226
